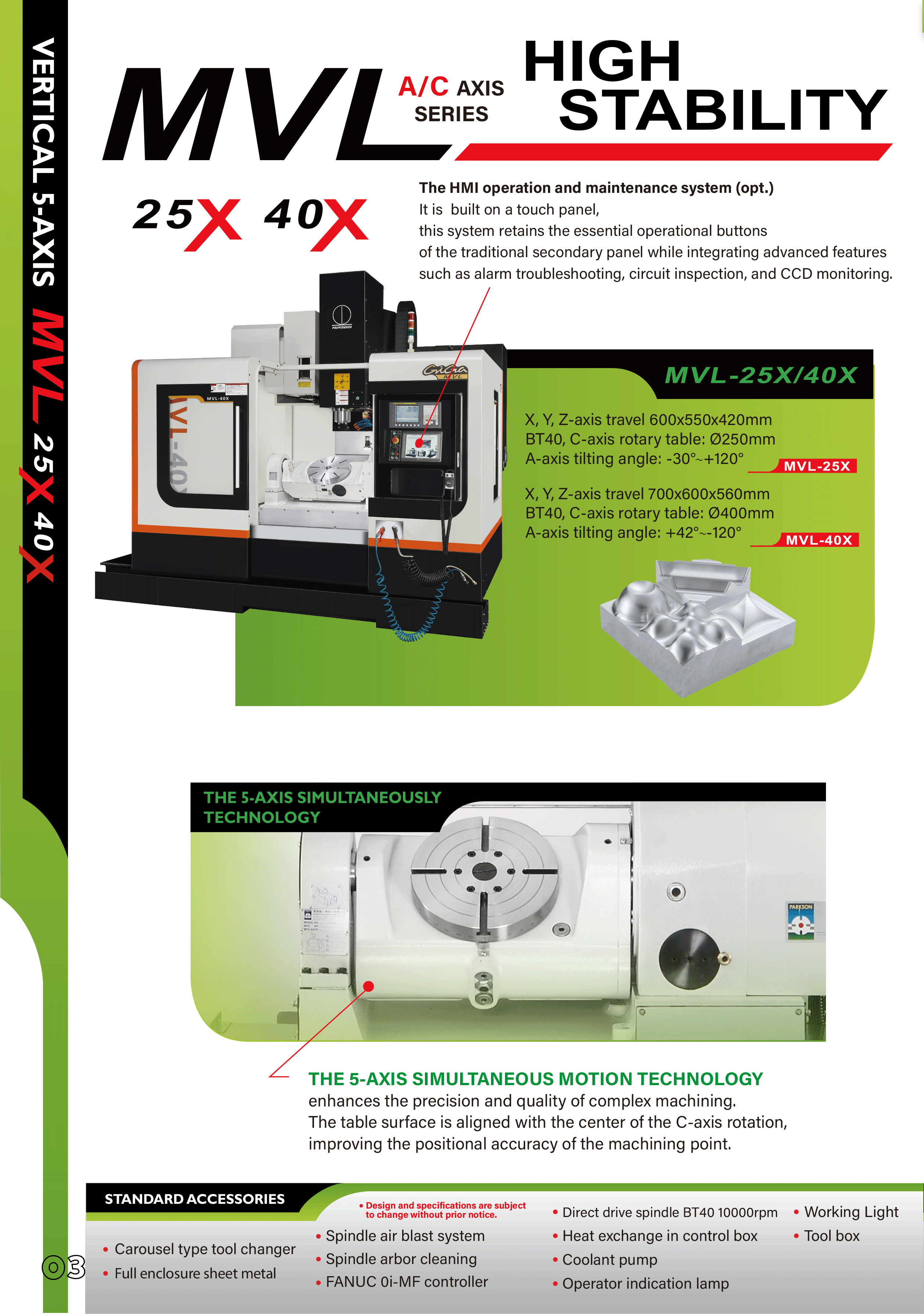

MVL-25X (A/C AXIS)
5 Axis Machining Center
● Uses 5-axis simultaneous machining
● Designed for high-precision, complex parts
● Supports multi-angle 3D surface machining
- Handles slopes, spirals, and irregular curves
- Table aligned with C-axis for precise positioning
- Ideal for aerospace, mold, and medical industries
| MODEL | MVL-25X (A/C axis) |
|---|---|
| TRAVEL | |
| X-axis | 600 mm |
| Y-axis | 550 mm |
| Z-axis | 420 mm |
| Spindle nose to table | 100-520 mm |
| Distance between spindle center&column slideway | 600 mm |
| SPAN | |
| X-axis span/width | 340/35 mm |
| Y-axis span/width | 605/45 mm |
| Z-axis span/width | 450/45 mm |
| SCREW | |
| X/Y/Z size x pitch | Φ40 x 12 mm |
| A-axis | |
| Tilting angle | +120°~ -30° |
| C-axis | |
| Size | Φ250 mm |
| Max. table load | 75/100 kgs |
| SPINDLE | |
| Spindle speed | 10000 rpm |
| Transmission of spindle | DDS |
| Spindle nose taper | BT40 |
| Spindle motor | 7.5/11 kw |
| X/Y/Z-axis servo motor | 3/3/3 kw |
| A-axis or B/C-axis servo motor | 1.8/1.8 kw |
| FEED RATE | |
| Rapid feed rate of X/Y/Z | 24/24/24 m/min |
| Cutting feed rate | 1-10 m/min |
| ATC | |
| ATC type | Arm type |
| Tool capacity | 24 pcs |
| Max. tool weight | 7 kgs |
| Max. tool length | 250 mm |
| Max. tool diameter | 80/140 mm |
| Reciprocating time/Tool change time | 2 sec |
| OTHERS | |
| Air source | 6 kgs/cm² |
| Occupied space (L x W x H) | 2550x2150x2850 mm |
| Machine weight | 6000 kgs |
