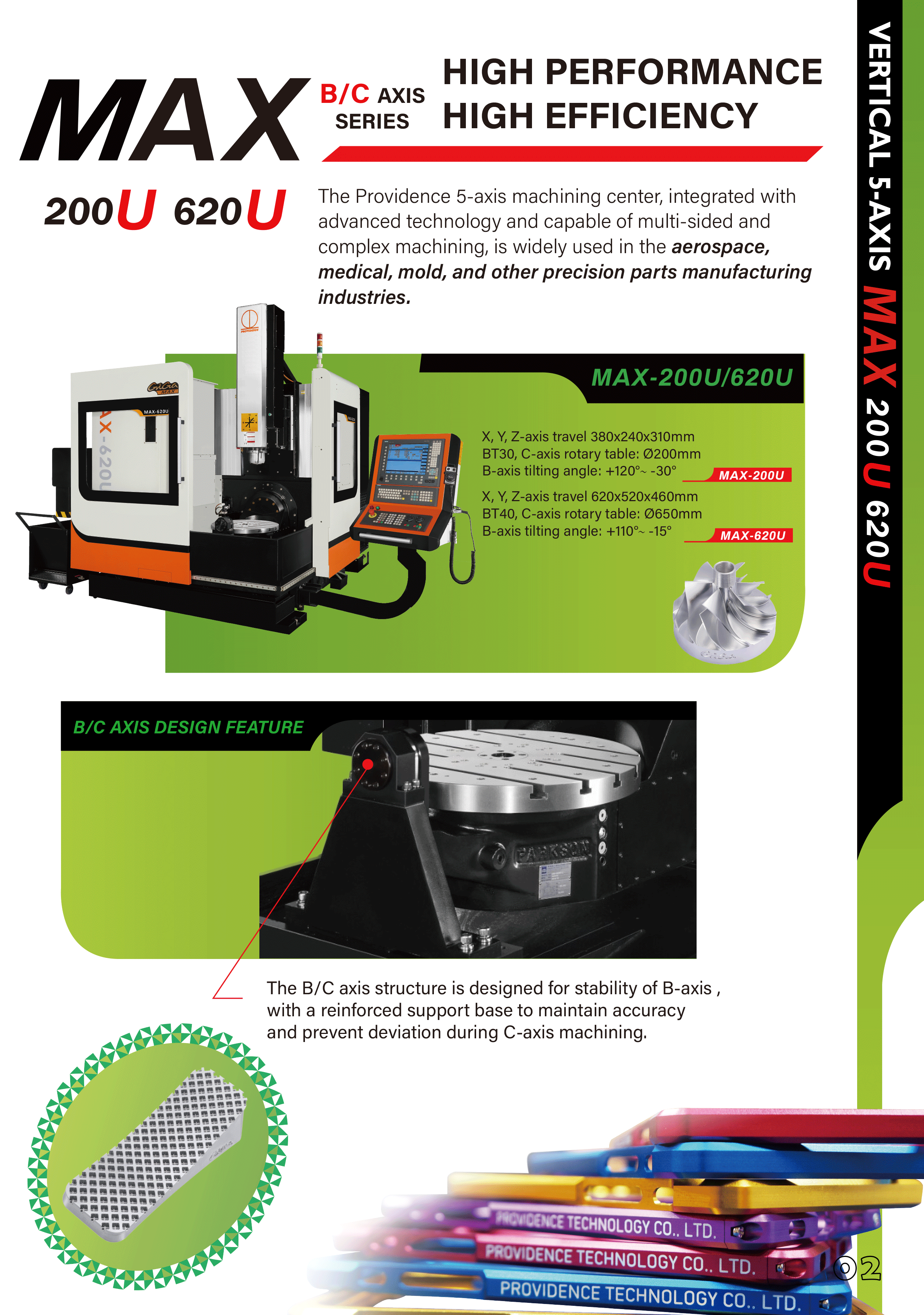

MAX-200U (B/C AXIS)
5 Axis Machining Center
● B/C-axis twin arm structural design
● Enhanced support and stability
● Integrated 5-axis technology for high precision machining
- Twin-arm design offers greater stability
- Improved accuracy during C-axis machining
- Better quality for complex part machining
| MODEL | MAX-200U (B/C axis) |
|---|---|
| TRAVEL | |
| X-axis | 380 mm |
| Y-axis | 240 mm |
| Z-axis | 310 mm |
| Spindle nose to table | 60-370 mm |
| Distance between spindle center&column slideway | 130 mm |
| SPAN | |
| X-axis span/width | 520/35 mm |
| Y-axis span/width | 375/35 mm |
| Z-axis span/width | 339/35 mm |
| SCREW | |
| X/Y/Z size x pitch | Φ32 x 12 mm |
| A-axis | |
| Tilting angle | +120°~ -30° |
| C-axis | |
| Size | Φ200 mm |
| Max. table load | 50/30 kgs |
| SPINDLE | |
| Spindle speed | 10000 rpm |
| Transmission of spindle | DDS |
| Spindle nose taper | BT30 |
| Spindle motor | 5.5 kw |
| X/Y/Z-axis servo motor | 1.5/2.3/3.3 kw |
| A-axis or B/C-axis servo motor | 4.9/1.5 kw |
| FEED RATE | |
| Rapid feed rate of X/Y/Z | 36/36/36 m/min |
| Cutting feed rate | 1-10 m/min |
| ATC | |
| ATC type | Arm type |
| Tool capacity | 24/30 pcs |
| Max. tool weight | 3 kgs |
| Max. tool length | 200 mm |
| Max. tool diameter | 65/130 mm |
| Reciprocating time/Tool change time | 1.5 sec |
| OTHERS | |
| Air source | 6 kgs/cm² |
| Occupied space (L x W x H) | 2950x3400x2650 mm |
| Machine weight | 4800 kgs |
