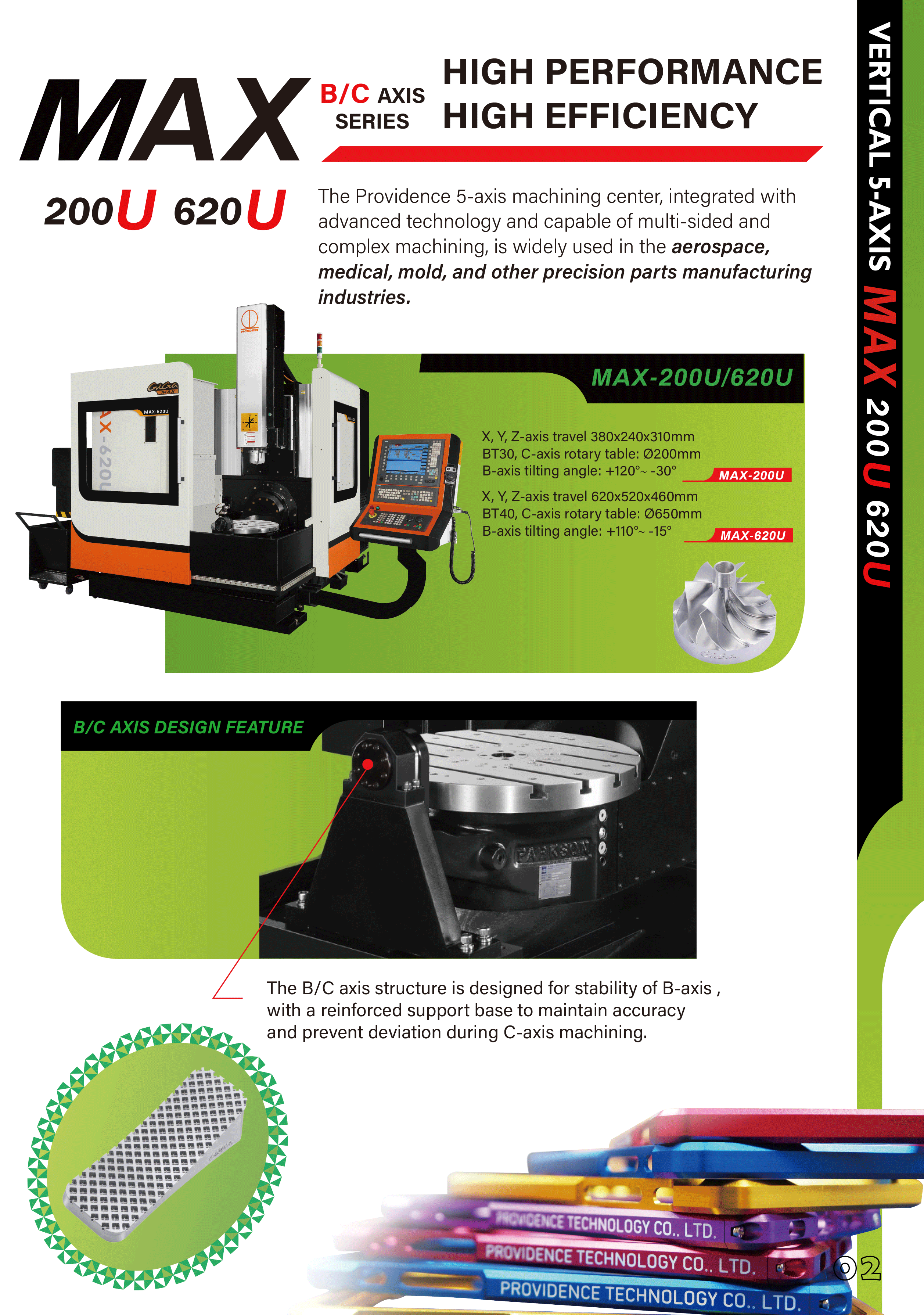

MAX-620U (B/C AXIS)
5 Axis Machining Center
● B/C-axis twin arm structural design
● Enhanced support and stability
● Integrated 5-axis simultaneous technology for high precision machining
- Twin-arm design offers greater stability
- Improved accuracy during C-axis machining
- Better quality for complex part machining
| MODEL | MAX-620U (B/C axis) |
|---|---|
| TRAVEL | |
| X-axis | 620 mm |
| Y-axis | 520 mm |
| Z-axis | 460 mm |
| Spindle nose to table | 150-610 mm |
| Distance between spindle center&column slideway | 171 mm |
| SPAN | |
| X-axis span/width | 610/45 mm |
| Y-axis span/width | 356/45 mm |
| Z-axis span/width | 272/35 mm |
| SCREW | |
| X/Y/Z size x pitch | Φ40 x 16 mm |
| A-axis | |
| Tilting angle | +110°~ -15° |
| C-axis | |
| Size | Φ650 mm |
| Max. table load | 300/200 kgs |
| SPINDLE | |
| Spindle speed | 12000 rpm |
| Transmission of spindle | DDS |
| Spindle nose taper | BT40 |
| Spindle motor | 9 kw |
| X/Y/Z-axis servo motor | 3.1/3.3/4.9 kw |
| A-axis or B/C-axis servo motor | 8.2/3.3 kw |
| FEED RATE | |
| Rapid feed rate of X/Y/Z | 36/36/36 m/min |
| Cutting feed rate | 1-10 m/min |
| ATC | |
| ATC type | Arm type |
| Tool capacity | 24/32 pcs |
| Max. tool weight | 7 kgs |
| Max. tool length | 250 mm |
| Max. tool diameter | 78/150 mm |
| Reciprocating time/Tool change time | 2 sec |
| OTHERS | |
| Air source | 6 kgs/cm² |
| Occupied space (L x W x H) | 4200x3200x2900 mm |
| Machine weight | 7000 kgs |
