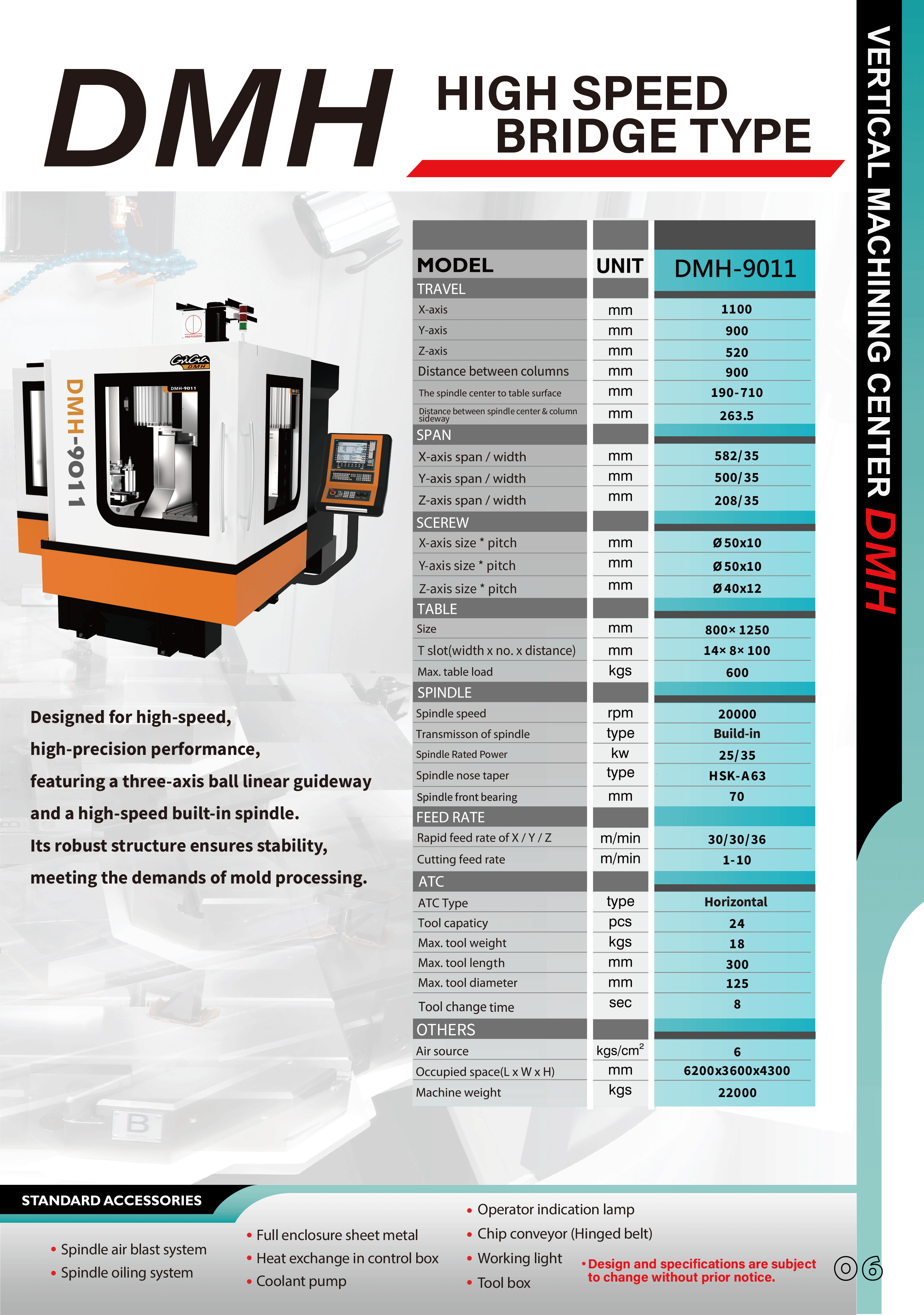

DMH-9011
High Speed Bridge Type Machining Center
● It is designed for high-speed, high-precision mold making.
- Equipped with 3-axis ball linear guideways and built-in spindle.
- High-rigidity frame ensures machining stability.
| MODEL | DMH-9011 |
|---|---|
| TRAVEL | |
| X-axis | 1100 mm |
| Y-axis | 900 mm |
| Z-axis | 520 mm |
| Distance between columns | 900 mm |
| Spindle nose to table | 190-710 mm |
| Distance between spindle center&column slideway | 263.5 mm |
| SPAN | |
| X-axis span/width | 582/35 mm |
| Y-axis span/width | 500/35 mm |
| Z-axis span/width | 208/35 mm |
| SCREW | |
| X-axis size x pitch | Φ50x10 mm |
| Y-axis size x pitch | Φ50x10 mm |
| Z-axis size x pitch | Φ40x12 mm |
| TABLE | |
| Size | 800x1250 mm |
| T slot (width x no. x distance) | 14x8x100 mm |
| Max. table load | 600 kgs |
| SPINDLE | |
| Spindle speed | 20000 rpm |
| Transmission of spindle | Build-in |
| Spindle rated power | 25/35 kw |
| Spindle nose taper | HSK-A63 |
| Spindle front bearing | 70 mm |
| FEED RATE | |
| Rapid feed rate of X/Y/Z | 30/30/36 m/min |
| Cutting feed rate | 1-10 m/min |
| ATC | |
| ATC type | Horizontal |
| Tool capacity | 24 pcs |
| Max. tool weight | 18 kgs |
| Max. tool length | 300 mm |
| Max. tool diameter | 125 mm |
| Tool change time | 8 sec |
| OTHERS | |
| Air source | 6 kgs/cm² |
| Occupied space (L x W x H) | 6200x3600x4300 mm |
| Machine weight | 22000 kgs |
