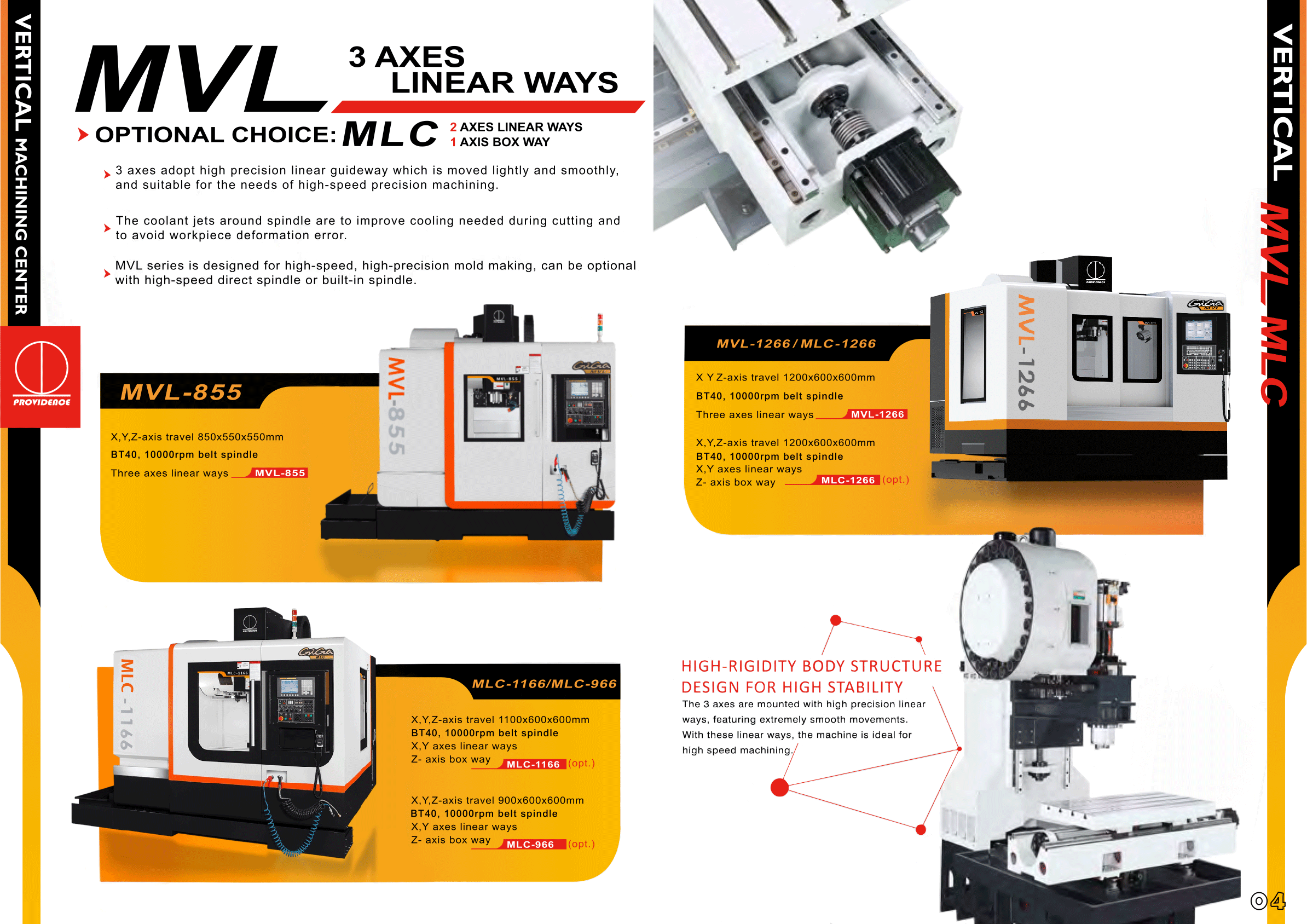

MLC-1166
VMC- 2 Linear Guideways + 1 Box Way
● X and Y axes use high-precision linear ways for smooth and fast travel, ideal for high-speed machining.
● Widened Z-axis span enhances stability during heavy cutting.
- Suitable for machining linear blocks, automotive parts, and mold components.
| MODEL | MLC-1166 |
|---|---|
| TRAVEL | |
| X-axis | 1100 mm |
| Y-axis | 600 mm |
| Z-axis | 600 mm |
| Spindle nose to table | 120-720 mm |
| Distance between spindle center&column slideway | 680 mm |
| SPAN | |
| X-axis span/width | 350/35 mm |
| Y-axis span/width | 650/45 mm |
| Z-axis span/width | 450/45 mm |
| SCREW | |
| X/Y/Z size | Φ40 mm |
| Pitch | 12 mm |
| TABLE | |
| Size | 1200x610 mm |
| T-slot (width x no x distance) | 18x5x100 mm |
| Max. table load | 700 kgs |
| SPINDLE | |
| Spindle speed | 10000 rpm |
| Transmission of spindle | Belt |
| Spindle motor | 7.5/11 kw |
| X/Y/Z axis servo motor | 2/2/2 kw |
| Spindle nose taper | BT40 |
| Spindle front bearing | 70 mm |
| FEED RATE | |
| Rapid feed rate of X/Y/Z | 36/36/16 m/min |
| Cutting feed rate | 1-10 m/min |
| ATC | |
| ATC type | Arm Type |
| Tool capacity | 20/24 pcs |
| Max. tool weight | 7 kgs |
| Max. tool length | 250 mm |
| Max. tool diameter | 100/160 (80/140) mm |
| Tool change time | 2 sec |
| OTHERS | |
| Air source | 6 kgs/cm² |
| Occupied space (L x W x H) | 2800x2200x2750 mm |
| Machine weight | 6400 kgs |
